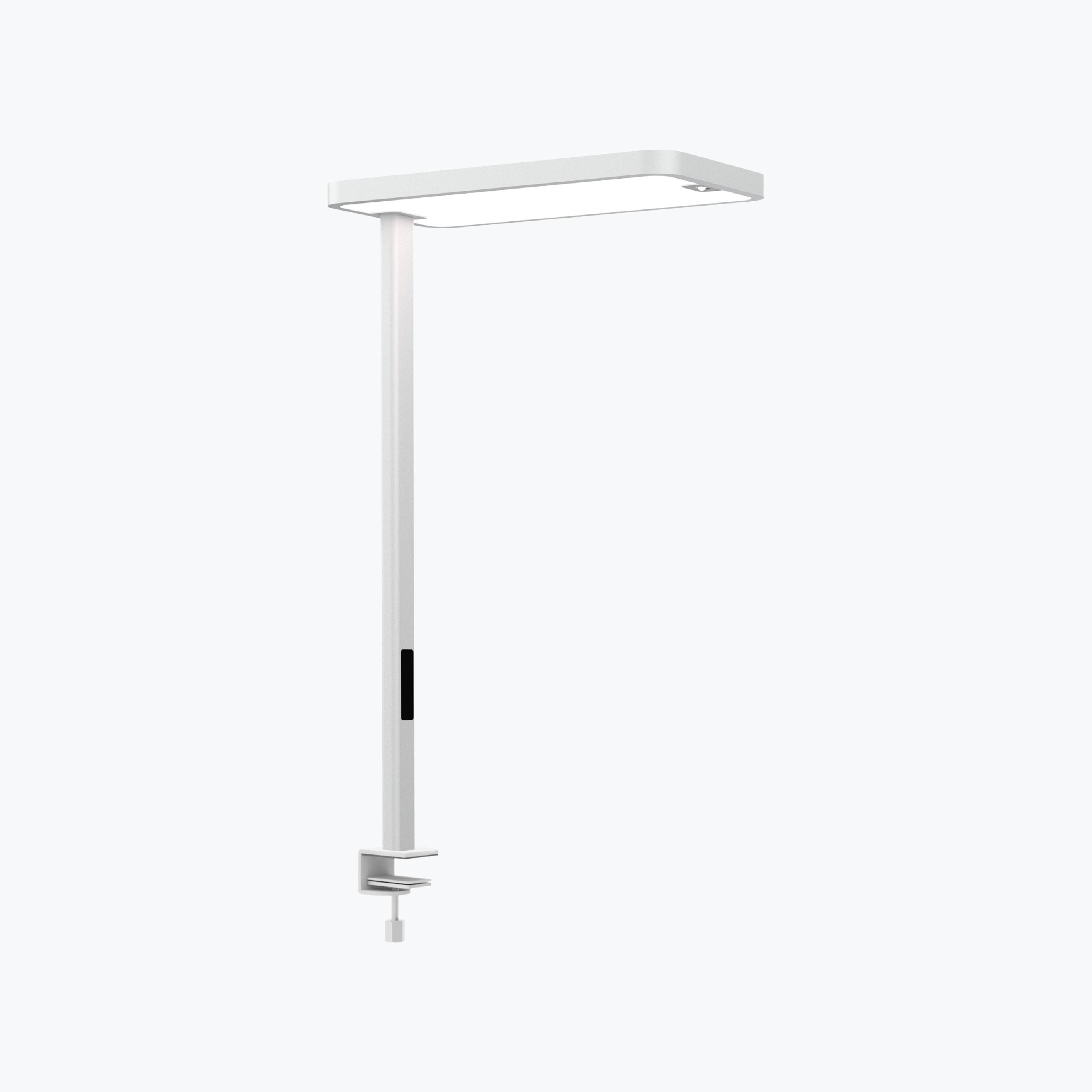

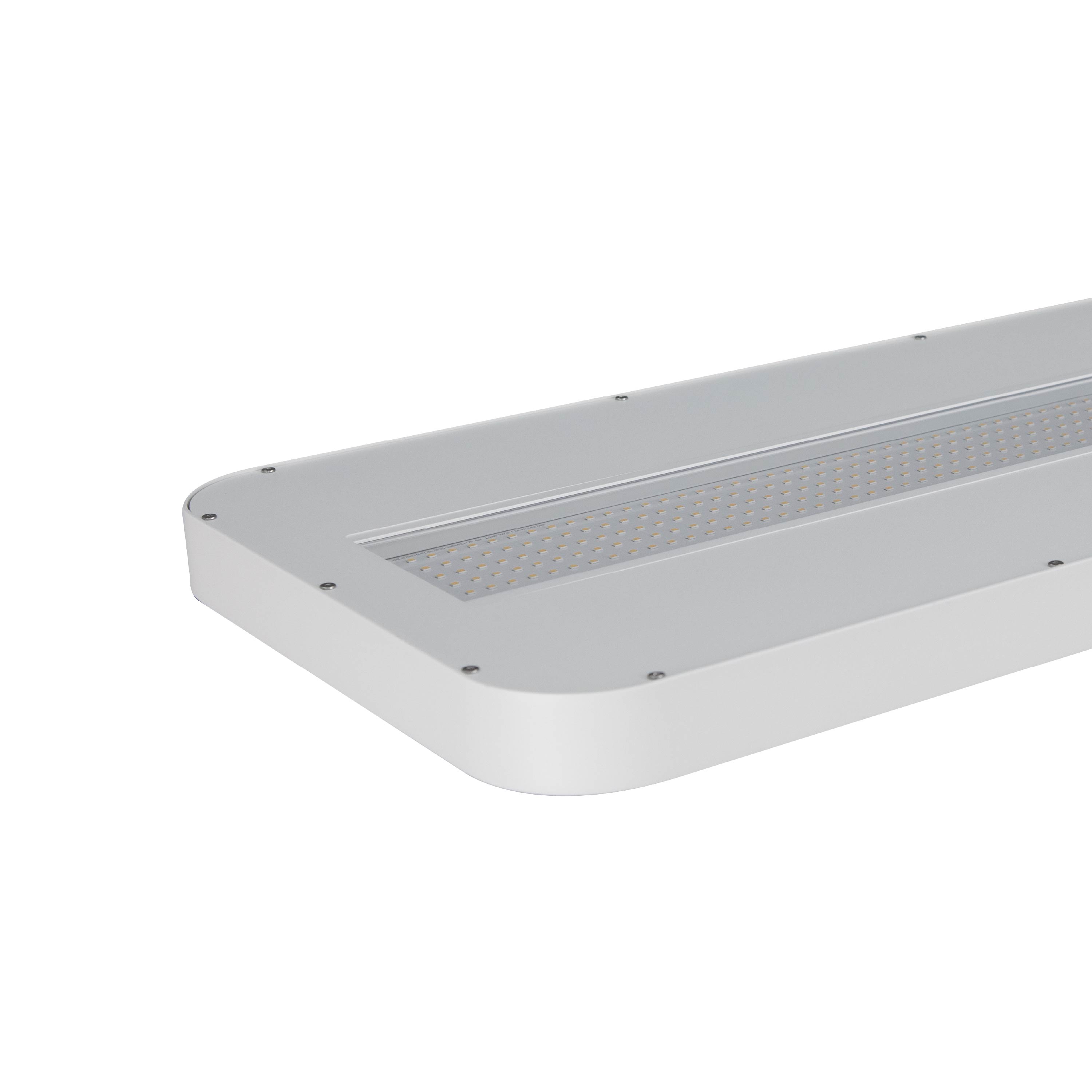

Mori-D — Desk-mounted full product view

FS2530 Series

Mori-D Desk-mounted Luminaire

Desk-mounted · 100 W

Mori-D provides 100 W direct/indirect workstation lighting in a desk-mounted format. The FS2530 model delivers 12,000 lm with UGR <13, independent touch dimming for direct and indirect light, and motion and daylight sensors. Choose a fixed colour temperature when ordering.

Luminous flux
12,000 lm
Glare rating (UGR)
UGR <13
Colour rendering
CRI ≥80
Luminous efficacy
120 lm/W
Request a quote

Specifications

Photometric Data

Model code
BR-FS2530-100W-F04
Input power
100 W
Total luminous flux
12,000 lm
Luminous efficacy
120 lm/W
Indirect / direct luminous flux ratio
75 / 25
Indirect luminous flux
9,000 lm
Direct luminous flux
3,000 lm
Colour temperature
Fixed CCT — 3000 K / 4000 K / 6000 K options
CRI
≥80
UGR
<13
Beam angles
Indirect 111° / Direct 77°
LED source
LUMILEDS SMD2835

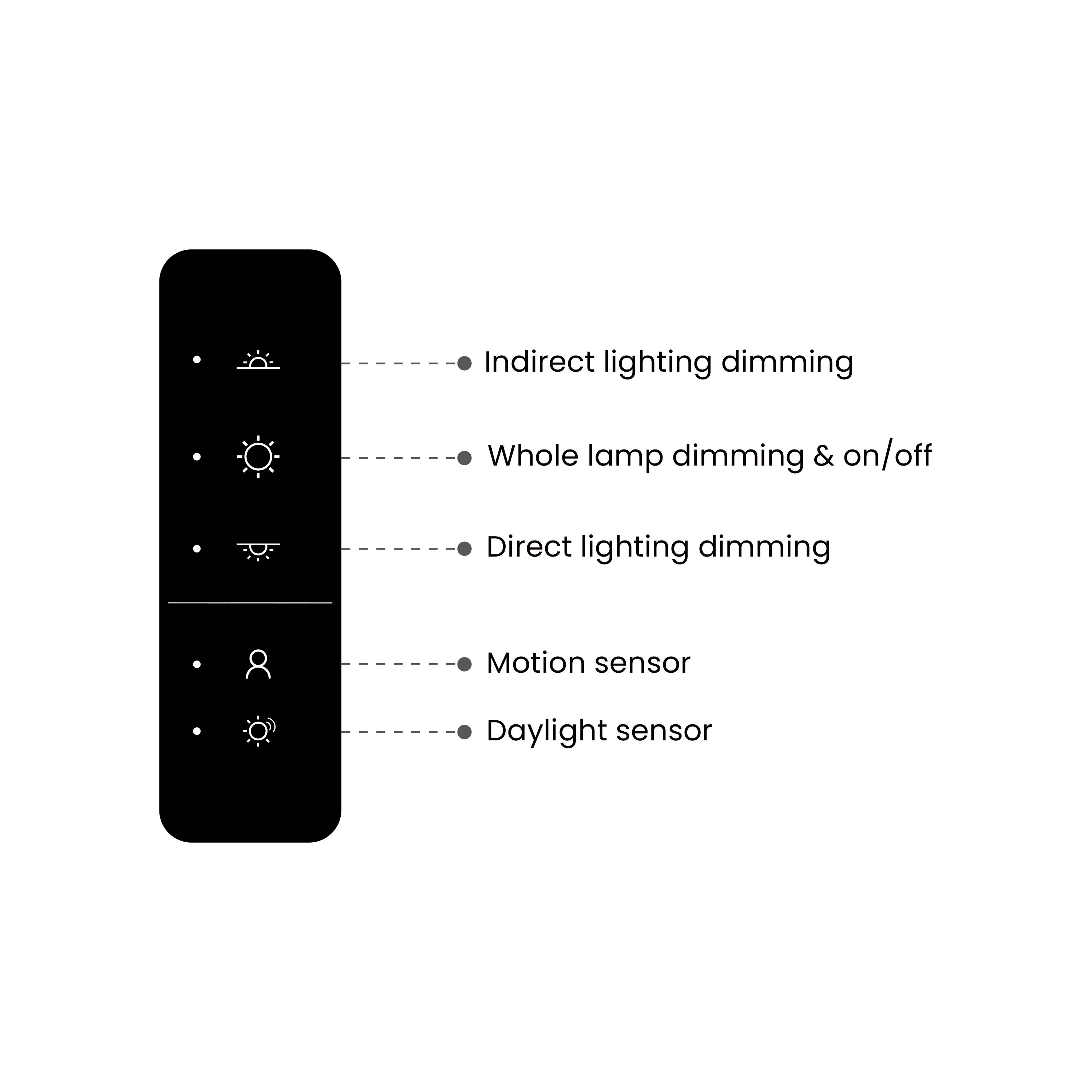

Control

Sensors
Motion + daylight
Control interface
Touch control · direct / indirect independently dimmable
CCT adjustment
No — fixed CCT selected when ordering

Electrical

Input
AC 200–240 V / 50 Hz
Power factor
>0.9

Construction

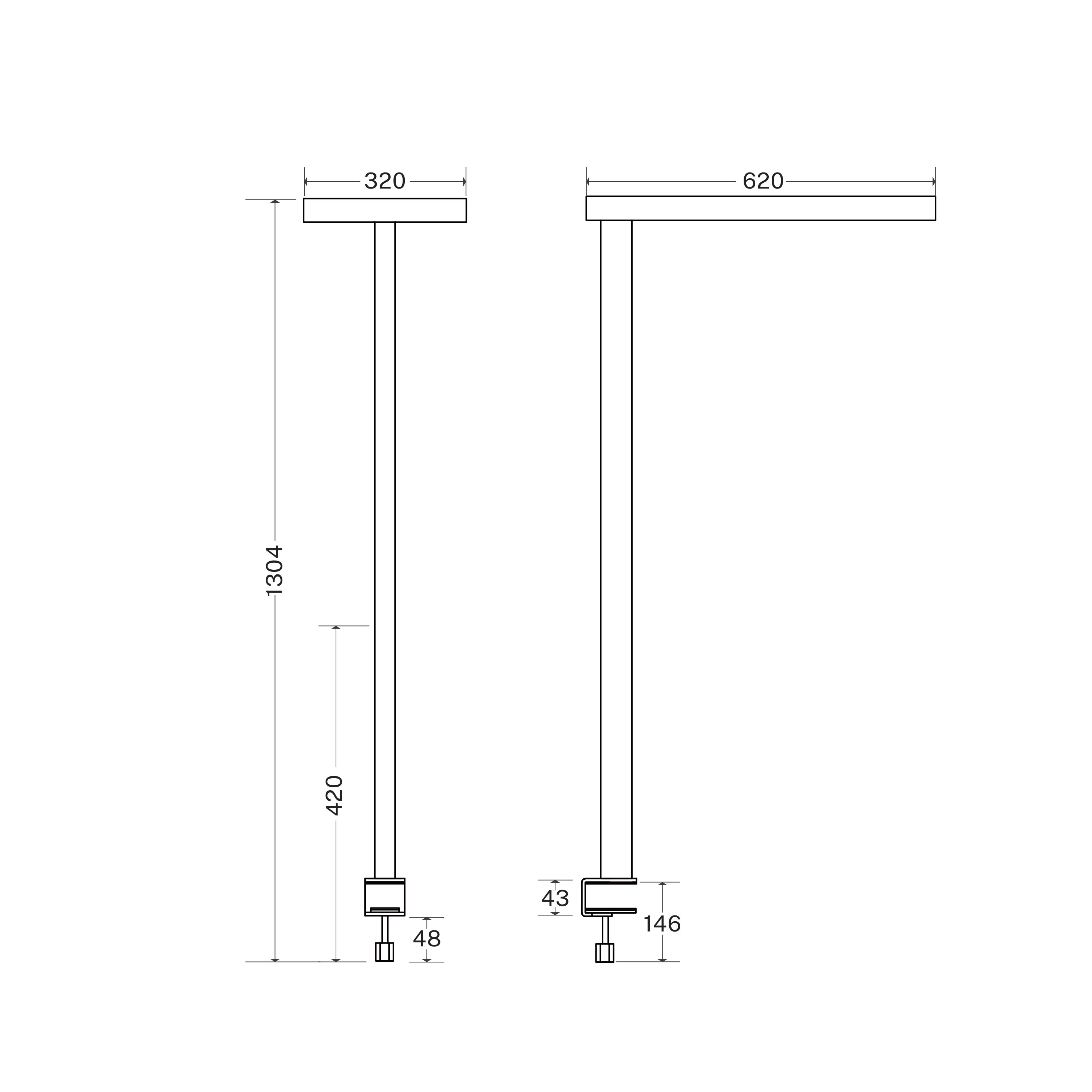

Dimensions
620 × 320 × 1304 mm
Material
Aluminium
Surface finish
Powder coated
Finish
Silver / White / Black
Protection rating
IP40
Cable length
1.8 m

Lifetime & Warranty

LED lifetime
≥36,000 h
Operating temperature
0–40 °C
Warranty
3 or 5 years, subject to quotation
Carton dimensions
1352 × 447 × 160 mm
